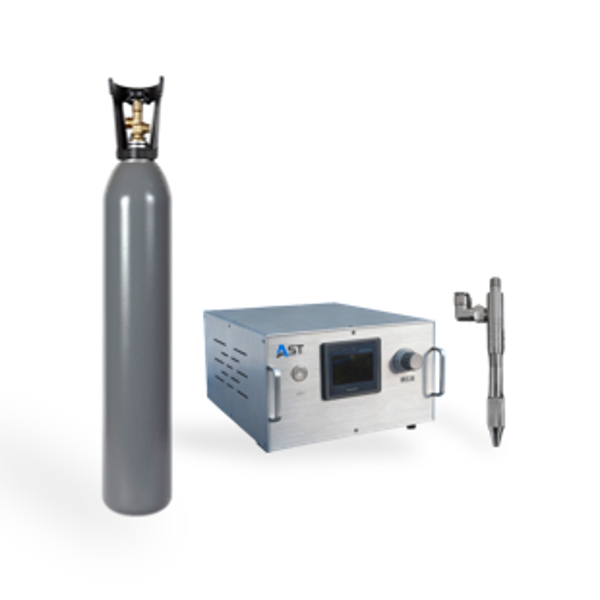

Dry ice CO2 snow precision cleaning machine

Sale!
Dry ice CO2 snow precision cleaning machine
US$0.99 US$1.00

Dry ice CO2 snow precision cleaning machine utilizes CO2 steel cylinder as the raw material to clean precision components and microstructures, it meets micro- and nano-scale cleanliness standards, ideal for scratch-sensitive items and particle removal. It is suitable for small-batch, high-variety, and targeted precision cleaning in laboratories, cleanrooms, and small workstations.

Technical Specifications

  1. Model: SC300
  2. CO2 pressure: 60-80 bar
  3. Liquid CO2 consumption: 0.2-0.5 L/min
  4. CO2 particles: 1-40um 40-60um 60-80um
  5. Air pressure: 3-9 bar
  6. Air consumption: 0.15-0.26 m3/min
  7. Power: 0.5-2.5 kW AC220V
  8. Dimensions (LxWxH): 500*380*200 mm
  9. Weight: 15 kg
  10. CO2 nozzle: Low-temperature resistant stainless steel nozzle

Suitable Industries

1. Semiconductors/Microelectronics: Wafers, chips, CMOS, MEMS; photoresist residues, silicon etching particles
2. Display Panels: LCD/OLED/Micro LED substrates, ITO glass; touchscreen dust, fingerprints
3. Optics/Optoelectronics: Lenses, optical elements, filters, prisms, collimators; polishing powder, oil stains
4. Optoelectronic Devices: VCSELs, laser cavities, optical windows, lens surfaces
5. Medical/Biotechnology: Microfluidic chips, precision catheters for surgical instruments, implantable devices
